MRI, sacroiliac joints - sequences and scan planes

An MR examination usually requires various technically different acquisition methods (sequences), whereby the different tissues exhibit different signal intensities in a greyscale from black (no signal) to white (high signal), and the joints must be visualized in two planed for adequate assessment.


Routine MR-sequences – sacroiliac joints

The sequences used routinely in axSpA consist of:


T1-weighted semi-coronal sequence which is sensitive for detecting marrow fat signal appearing bright whereas fluid is black. Abnormal fat deposition, which can occur as a sequel after bone marrow inflammation, is well visualised on a T1-weighted sequence. Besides, a T1-sequence is optimal with regard to visualization of the anatomical structures. Fatty tissue is present between soft tissue structures such as muscles, which will therefore be clearly delineated.

Semi-coronal “cartilage” sequence such as a T1-weighted fat-suppressed (T1FS) sequence or a gradient echo sequence visualizing the bone cartilage interface (articular surface) to optimize the visualization of erosions.


STIR (Short Tau Inversion Recovery) sequences or T2-weighted fat-suppressed sequences in two perpendicular planes (semi-coronal and semi-axial, respectively) to detect active inflammation, displaying areas with high water content bright against a slightly variable dark background due to suppression of signals from fatty tissue, doi:10.1136/ANNRHEUMDIS-2022-EULAR.3365.

In the case of suspected infection additional postcontrast T1FS sequences in two perpendicular planes are necessary to detect possible abscess formation etc., but in the evaluation of axSpA changes postcontrast sequences do not add diagnostic value to the sequences mentioned above, doi:10.3899/jrheum.090519.

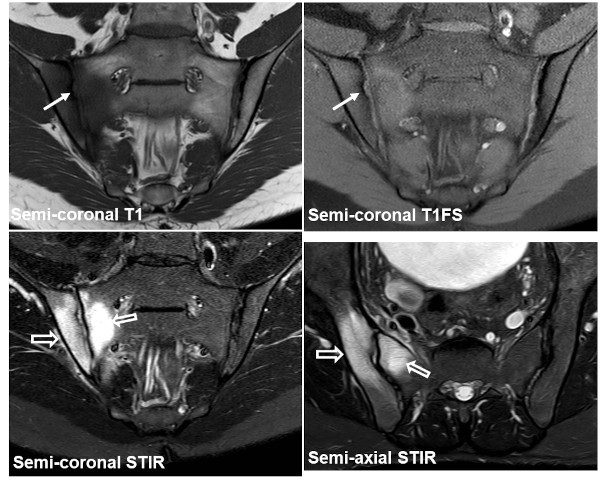

The images below show the recommended sequences, semi-coronal T1, T1FS and STIR in addition to a semi-axial STIR sequence. There is manifest subchondral edema at the right SIJ (open arrows) and also an iliac erosion (arrow), but no abnormal fat deposition.


Routine MRI scan planes - sacroiliac joints

Examination of the SIJs must, like MRI of other joint areas, include two different scan planes. This is necessary for visualizing all anatomical parts of the joints and thereby assessing abnormalities correctly. Due to the form and orientation of the cartilaginous joint compartment and a posterior ligamentous compartment a semi-coronal and a semi-axial slice orientation should be used. Certain separation of the anterior cartilaginous and the posterior ligamentous joint compartment can only be obtained with a semi-axial slice orientation as illustrated in the section about normal anatomy.

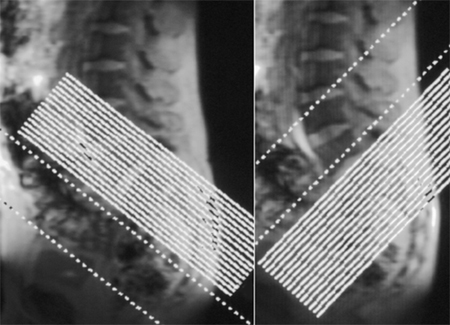

The image shows the orientation of scan planes on an initial lateral scout view of the SIJ region. To the left semi-coronal and to the right semi-axial slice orientation.
